Higher Profits On Your Print Jobs

Don’t limit yourself to beautifully printed jobs any longer – it’s time to offer your customers more value and creativity ! The JETVARNISH 3D One turns printed jobs into spectacular and irresistible print products that will immediately catch the attention of your customers. You will find it easy to spot coat digital prints, highlight defined areas, or add 3D effects – all of which enables you to offer attractive print products that are more vivid and tactile.

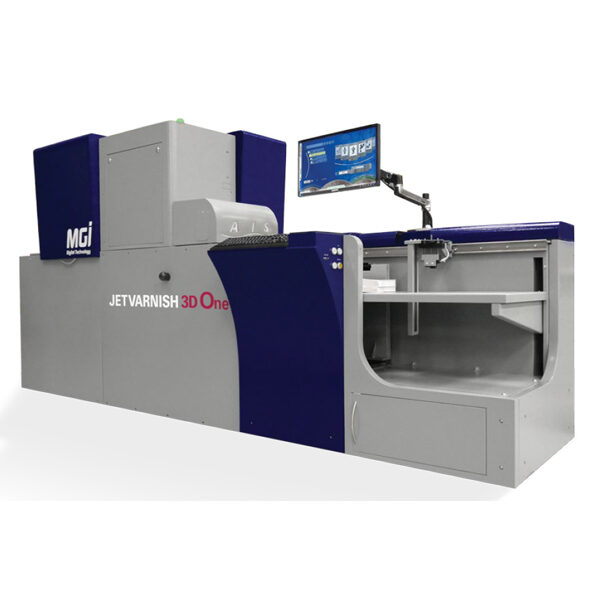

MGI JETvarnish 3D ONE, Print Embellishment for EveryONE!

The JETvarnish 3D One is the most cost-effective point of entry into MGI’s complete series of sheet- fed, digital print enrichment finishing presses. The small operational footprint of the JETvarnish 3D One allows printers, finishers, and converters to have an in-house full production and prototyping print embellishment system without screens, dies or plates.

The all-purpose patented varnish formula allows both flat 2D Spot UV highlighting and sculptured 3D raised special effects on a wide range of substrate stocks and media (such as paper, synthetics, plastics). The JETvarnish 3D One creates opportunities for enhancing brand identity, more powerful printed communications and highly profitable digital special effects on all printing applications, such as booklets, brochures, business cards, mailpieces, book & magazine covers, sheet-fed labels, small folding cartons and more!

DO YOU KNOW???

Key features of JETvarnish 3D One:

  • High productivity with single pass printing
  • Digital 2D/3D Special Effects Solution
  • Full automatic varnish registration by AIS SmartScanner
  • Coats up to 2,077 A3 sheets size per hour
  • Software Suite supplied for streamlining and facilitating production
  • UV Inkjet Technology combined with Konica Minolta’s drop-on-demand piezoelectric print heads for high quality

Product Specifications – JETVARNISH 3D ONE

Printing Technology
  • MGI’s exclusive inkjet engine technology
  • Drop-on-Demand (DoD) technology
  • Piezoelectric printheads, developed and manufactured by Konica Minolta
  • Single-pass printing
  • Flexible printing architecture
Coating Thicknesses
  • Depending on your file, the inks used and the type of surface of your sheet, the coating thickness can vary
  • Laminated and aqueous coating: 21 μm – 116 μm for 3D-raised effects and tactile finish
  • Toner and coated paper: 30 μm – 116 μm for 3D-raised effects and a tactile finish
Production Speed
  • 2D/flat mode: Up to 2,077 A3 sheets per hour (with 21 μm)
  • 3D/raised mode: Up to 1,260 A3 sheets per hour (with 51 μm)
  • Up to 547 A3 sheets per hour (with 116 μ)
Registration
  • SmartScanner coupled with Artificial Intelligence (AIS) for full real-time automated sheet-to-sheet registration process; no crop marks required
Formats
  • Min.: 8″ x 11.8″ (21 x 29.7 cm)
  • Max.: 14.3″ x 29.5″ (36.4 x 75 cm)
  • Max. printable width: 13.9″ (35.2 cm)
Substrate Thickness
  • Min.: 135gsm and not less than 150 μm or 6 mil before printing and lamination
  • Max.: 450gsm and not more than 450 μm or 18 mil before printing and lamination
  • Motorised height-adjustment printheads
Substrates*
  • Printing on most matte or glossy laminated surfaces, withor without aqueous coating, layered paper, plastic, PVC and other coated materials
Varnish on toner
  • Spot 3D coat directly onto most digital prints with no lamination or coating required
UV coatings and capacity
  • Varnish delivered with a 10-liter tank capacity
High-capacity
automatic feeder
Feeder able to handle a paper pile:

  • Up to 11″ (28 cm)
  • 2,250 sheets at 135gsm
Paper Tray Tray able to handle a paper pile:

  • Up to 5.9″ (15 cm)
  • Approximately 1,250 sheets at 135gsm
  • All paper formats from Letter up to 14.3″ x 29.5″ (36.4 x 75 cm)
  • No paper extensions available
  • Automatic tray full sensor
Paper Path
  • 100% flat paper path
  • Vacuum-feed system
  • Air-feed system
  • Automatic double-sheet detection
  • In-line LED dryer
  • On-the-fly drying and curing via integrated LED
Maintenance and remote technical support
  • Daily maintenance completed in less than 10 minutes
  • Majority of procedures are automated
  • Automatic cleaning system
  • From cold start to production in less than 10 minutes
  • Remote troubleshooting & support via included video/web camera (high-speed Internet connection required)
Operator Panel
  • Integrated user-friendly LCD touchscreen
Options
  • Variable Data Printing (VDP) option:
  • Complete system including RIP, barcode reader and MGI software to automate the association between a preprinted barcode and its specific spot coating file
Dimensions (L x W x H)
  • 13.19′ x 3.94′ x 5.91′ (4.02 x 1.20 x 1.80 m)
  • Necessary clearance: 3.3′ (1 m) on all 4 sides
Weight
  • ± 2,646 lb (1,200 kg)
Electrical Requirements
  • 7.5 kW (30A) at 208 – 240 Volts 50/60 Hz
  • 2 Nema plugs L6-30P
  • (30A 250V, 2P 3 Wires)
Operating
  • Temperature: 64°F – 86°F (18°C – 30°C)
  • Environment relative humidity: 30 – 55% (no condensation)
Respecting the environment
  • Eliminates resource waste (wasted electricity, paper and varnish)
  • No plates (offset) or screens (screen printing)
  • No cleanup or preparation between jobs
  • Drastic reduction in amount of consumables and use of bulk packaging
  • Coating without volatile solvent
Options
  • Automatic PDF file converter (using PC-C1)
  • Variable data printing barcode camera
  • AIS SmartScanner lighting for metalised substrates

Request to receive the product’s brochure
