RETHINK 3D Effects with Digital Spot UV Coating

In the printing industry, customisation and personalisation are increasingly in demand. Offering 2D or 3D effects can make print jobs more profitable. Now, thanks to the AccurioShine 3600 with iFOIL One, you have a new weapon in your arsenal to meet the demanding needs of today’s printing requirements and take care of the business end of your company.





Konica Minolta’s AccurioShine 3600 with iFoIL One

Add Shine to Your Business

The AccurioShine 3600 is a ground-breaking technology for adding 2D and 3D gloss effects at a reasonable cost without the complicated steps of conventional systems. Fully digital, featuring industry-leading artificial intelligence registration technology and eco-friendly LED curing system, all at an impressively compact size. The AccurioShine 3600 allows you to offer your customers a full range of high-impact finishing effects, while raising profit margins.

Features

Added-value finishing capabilities are a must for customers and a boost for your business

  • Provide a broader range of finishes at an impressively small footprint
  • Create both 2D and 3D finishes on paper, plastics, synthetics and cartons from 135 to 450 gsm
  • Intelligent and flexible automatic registration system allows you to easily create print files with perfect registration and with minimal waste
  • Eco-friendly – designed to prevent any cleaning or material waste between jobs, reduce paper, varnish and electrical consumption
  • Shorter lead times and a simple job set-up
  • Optional additions including the Corona Treatment System (CTS) and Automatic PDF File Converter open the door to even more possibilities

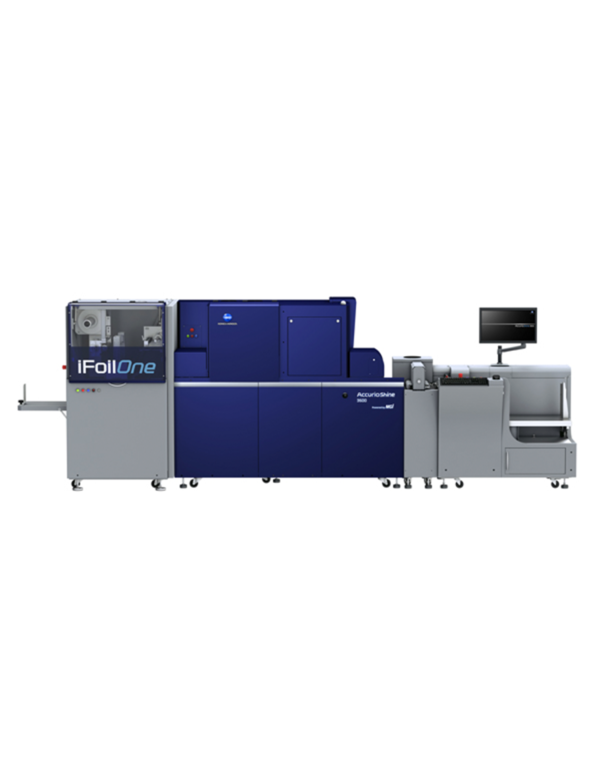

Introducing the AccurioShine 3600 with iFOIL One

Nothing makes an impression like individually customised items gilded in gold. For the first time ever, you can emboss variable data jobs with the ground-breaking iFOIL One. This optional unit can be added to your system to enable show-stopping metallic foil elements in your print work in both 2D and 3D on all the same surfaces as gloss. Fully digitalised, variable and integrated.

iFOIL One Variable Hot Foil Stamping

Never before have the richness of precision foil and the ease of in-line digital variable data printing been combined. Traditionally a labour-intensive process requiring significant expertise and complex processes, foil embossing has remained out of reach for many printers. The industry-first iFOIL One unit makes it easy, integrating hot foil stamping in 2D and 3D into your AccurioShine 3600. Use the fully digitised system with variable data to apply personalised foil elements for the ultimate in luxury expression. The iFOIL One applies varnish, heat and pressure to adhere foil with precision at speeds up to 2,298 A3 sheets per hour.

Do you know?

PRODUCT SPECIFICATIONS

Printing Technology
  • Konica Minolta’s exclusive inkjet engine technology
  • Drop-on-Demand (DoD) technology
  • Piezoelectric printheads, developed and manufactured by Konica Minolta
  • Single-pass printing
  • Flexible printing architecture
Coating thickness Depending on your file, the inks used and the type of surface of your sheet, the
coating thickness can vary

  • Laminated and aqueous coating: 21 μm – 116 μm for 3D-raised effects and tactile finish
  • Toner and coated paper: 30 μm – 116 μm for 3D-raised effects and a tactile finish
  • Lowest possible thickness using dithering mode: 7 μm (substrate permitting)
Production speed
  • 2D/flat mode: Up to 2,077 A3 sheets per hour (with 21 μm)
  • 3D/raised mode: Up to 1,260 A3 sheets per hour (with 51 μm)
  • Up to 547 A3 sheets per hour (with 116 μ)
Registration Uses the Artificial Intelligence SmartScanner® for full real-time automated sheet-to-sheet registration process; no crop marks required, registration accuracy to ± 200 μm
Formats
  • Min.: 135 g/m2 and not less than 150 μm before printing and lamination
  • Max.: 450 g/m2 and not more than 450 μm before printing and lamination
  • Motorized height-adjustment printheads
Substrate thickness Maximum roll diameter capacity: 850 mm; Standard inside core diameter: 3 inches; Maximum roll weight: ±120 kg
Substrates
  • Printing on most matte or glossy laminated surfaces, with or without aqueous coating, layered paper, plastic, PVC and other coated materials
  • Printing directly on most digital prints with no lamination or coating required
Dimensions (L x W x H)
  • 4.02 x 1.20 x 1.80 m (13.19’ x 3.94’ x 5.91’)
  • Necessary clearance: 1 m (3.3’) on all 4 sides
Weight 1,068 kg (2,355 lb)

Request to receive the product’s brochure here
