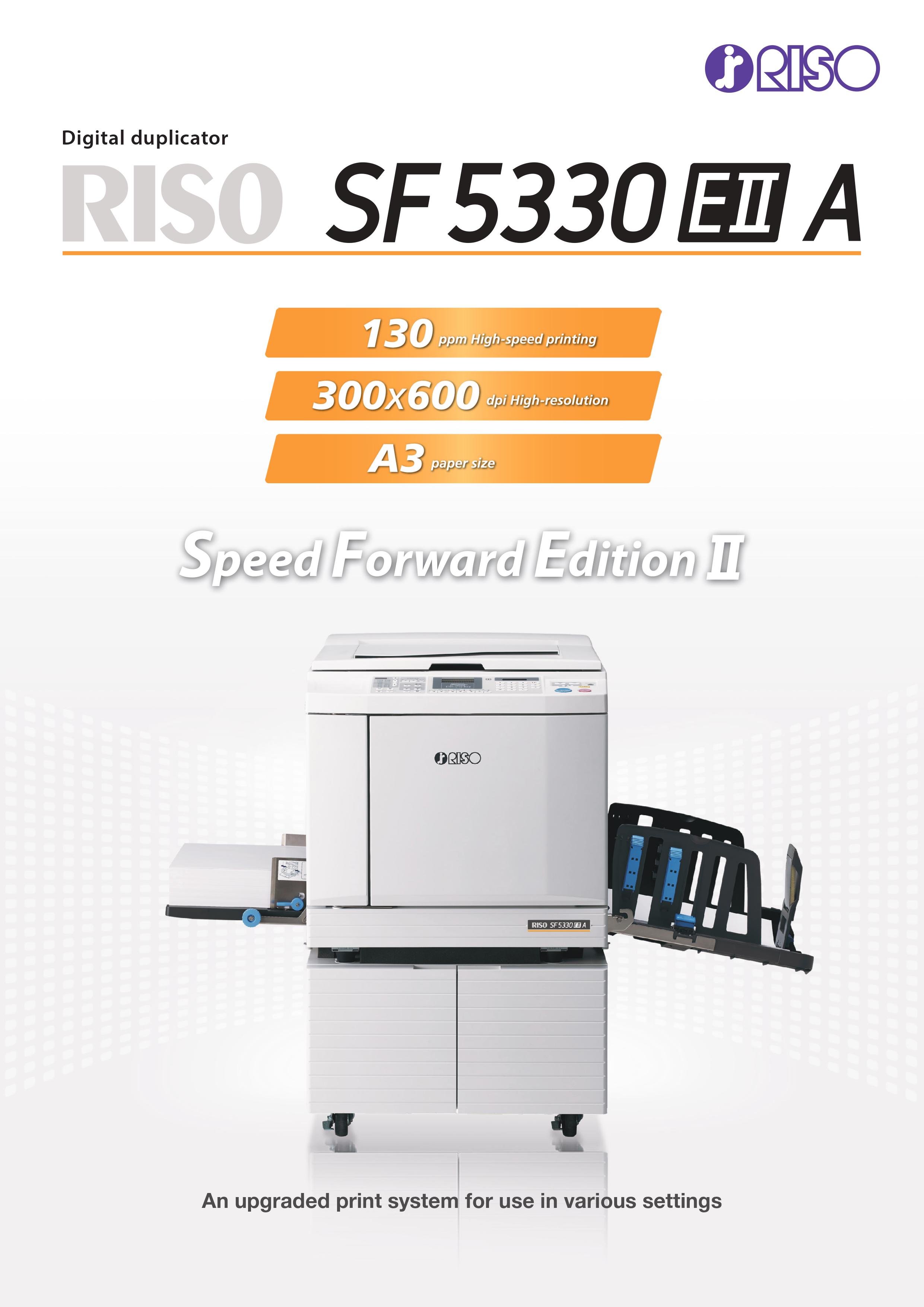

Riso Digital Duplicator SF 5330: An upgraded print system for use in various settings

Category:

SF5330EII

High-speed 130 ppm printing

Achieving 1000 pages printed in approx. 8 minutes, this surprisingly rapid rate will efficiently support your heavy paperwork requirements.

Quick Master Making mode

A new function, Quick Master Making mode, shortens the master-making time while still maintaining high image quality.



Heavy-load paper feeding

The paper feed tray has a capacity of 1000 sheets* for both feeding and receiving, which ensures uninterrupted printing over a longer period.

*When using the following weights of paper: 64 gsm to 80 gsm.



Overwhelmingly economical print costs

The SF EⅡ series makes prints from a master. The more pages generated from each master the lower the cost per print. This means you can benefit from highly economical large-volume printing in the long run.



Multiple Page Printing

Page layout printing combines multiple copies of the same page, or copies of multiple pages onto a single printed page to save paper. Conveniently condense bulky multiple-page documents in an easy-to-read format. These functions are available when using the printer driver.

Versatile paper handling capability

The SF EⅡ series plays multiple roles, accepting a wide range of paper types such as recycled paper, coarse paper, cards and envelopes.

SF5330 EⅡ

Master Making/Printing Methods High-speed digital master-making/Fully automatic printing
Original Type Book or sheet
Master Making Time*1 Quick Master
Making mode		 – Approx. 14 seconds (A4, long-edge feed)
– Approx. 18 seconds (A4, short-edge feed)
Normal master
making mode		 – Approx. 16 seconds (A4, long-edge feed)
– Approx. 20 seconds (A4, short-edge feed)
Resolution Scanning 600 dpi × 600 dpi
Printing 300 dpi × 600 dpi, Quick Master Making mode: 300 dpi × 400 dpi
Maximum Scanning Area 297 mm × 432 mm
Print Paper Weight 46 gsm to 157 gsm
Print Paper Size 100 mm × 148 mm to 310 mm × 432 mm
Maximum Printing Area 291 mm × 413 mm
Paper Feed Tray Stacking Capacity 1000 sheets*2, stacking height of 110 mm or lower
Paper Receiving Tray Stacking Capacity 1000 sheets*2, stacking height of 110 mm or lower
Print Speed 5 levels: 60, 80, 100, 120 and 130 ppm
Print Position Adjustment Horizontal: ±15 mm, Vertical: ±10 mm
Image Processing Mode Line, Photo, Duo, Pencil
Print Reproduction Ratio Zoom: (50% to 200%), 100% reduction ratio, 3 levels of enlargement (141%, 122%, 116%), 4 levels of reduction (94%, 87%, 82%, 71%)
User Interface LCD panel
Functions Original Scanning mode, Scanning Level, Enlargement/Reproduction, Dot Process, 2-Up, Book, Ink Saving, Quick Master Making, ADF-Semi-Auto*3, Speed, Density, Print Position, Program A/B, D-feed check, Slip sheet sorting, Job Separation*4, Idling, Confidential, Meter Display, Count Report Output, Proof, Direct Printing, USB Flash-via-Printing, Paper Memory Print, Auto Sleep Setting, Auto Power-OFF Setting, ECO mode, RISO iQuality System
PC Interface USB2.0, Ethernet:100BASE-TX, 10BASE-T*5
Ink Supply Full automatic (1000 ml/cartridge)
Master Supply/Disposal Full automatic (A3: approx. 220 sheets per roll)/Disposal capacity: approx. 100 sheets
Power Source AC 100-120 V 3.4 A, AC 220-240 V 1.6 A, 50-60 Hz
Power Consumption Standard Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF: 0.5 W or lower
Optional Accessories
Connected*6		 Max.: 315 W, Ready: 30 W or lower, Sleep: 10 W or lower, Power-OFF: 0.5 W or lower
Dimensions (W×D×H) In use 1415 mm × 670 mm*7 × 1065 mm*8
In storage 780 mm × 670 mm*7 × 1065 mm*8
Required Space (W×D×H) 1415 mm × 1240 mm × 1515 mm*8
Weight 100 kg*9
  • *1 Measurement value when set to 100% reproduction ratio.
  • *2 When using the following weight of paper: 64 gsm to 80 gsm
  • *3 Usable when the optional auto document feeder is installed.
  • *4 Usable when the optional Job Separator is installed.
  • *5 RISO Network Kit S10 (optional) is required for connecting to the network.
  • *6 When all the following optional accessories are installed, Auto Document Feeder, Job Separator, IC Card Reader.
  • *7 The depth does not include the stabilizers for the dedicated stand.
  • *8 The height includes the dedicated stand.
  • *9 The weight does not include the ink, master roll, and stand.
  • Notes: The specifications are subject to change without prior notice.
